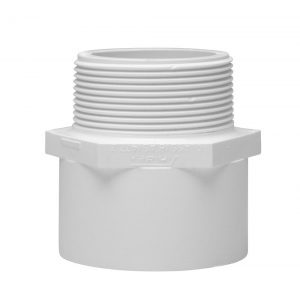

CAT 17 Valve Sockets



Contact Vinidex Customer Service for availability of products on this page.

The valve socket is solvent cement jointed to a pipe spigot. The male-threaded end of the valve socket provides a connection for a PVC, brass or galvanised wrought iron threaded valve-type fitting.

Vinidex Code Size DN (mm) C H L S
35760 15 14.5 6.6 48 16
35770 20 19 6.8 46.7 19.6
35790 25 24.2 8 58.5 22.1
35800 32 31.5 8 60.5 24.7
35810 40 36.5 8.9 56 24.5
35820 50 46.3 8.6 74.5 29
35830 65 62.5 10 92.5 28.5
35840 80 69.5 19.7 94.5 34.5
35850 100 90 20 112.5 41
