CAT 16B Flange Gasket



Contact Vinidex Customer Service for availability of products on this page.

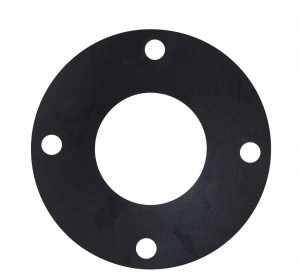

A flange gasket is a sealing gasket located between the PVC flange and its mount. It is manufactured in elastomer and is 3.2 mm thick. Any specific requirement should be stated when ordering.

Vinidex Code Size DN (mm) ID OD Hole Diameter No. of Holes
83620 50 60.3 150 18 4
83640 80 88.9 185 18 4
83650 100 114.3 215 18 4
83780 125 139.7 255 18 8
83670 150 168.3 280 22 8
83680 200 215 335 22 8
