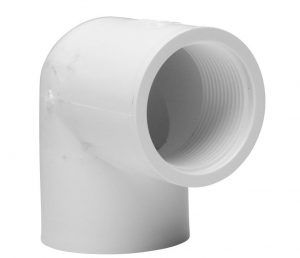

CAT 15 90° Faucet Elbows



Contact Vinidex Customer Service for availability of products on this page.

The faucet elbow is used to provide a female BSP connection. In irrigation it is used as a means of connecting a threaded riser pipe to an underground pipeline.

Vinidex Code Size DN (mm x mm) C* L S
35510 15x15 15.5 43.1 25.1
35520 20x15 20.9 43 24.9
35530 20x20 20.7 43 23.4
35540 25x15 26.9 46.4 24.7
35550 25x20 26.9 46.4 22.9
35560 25x25 26.8 46 24.7
35570 32x32 39.1 49.7 22.1
35580 40x40 44 59 30
*Smaller bore
