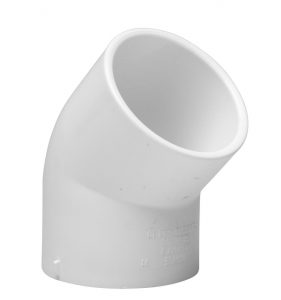

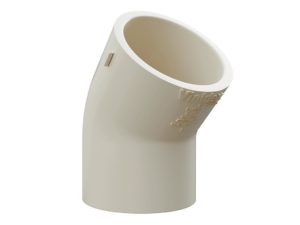

CAT 10 45° Elbows



Contact Vinidex Customer Service for availability of products on this page.

Elbows are used to provide 45° changes in direction in pipelines. They are often employed in confined space situations in place of CAT 12, 45° bends.

Vinidex Code Size DN (mm) C L
35180 15 17.5 33
35190 20 23.7 34.5
35200 25 30 39.5
35210 32 38.8 44.5
35220 40 47.9 40
35230 50 60 46
35250 80 78.7 81.5
35260 100 102.2 95
35280^ 150 155 125
30388* 200 218 181
