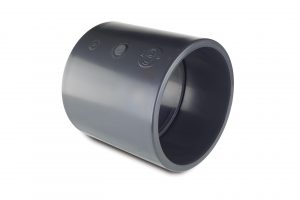

CAT 7 Couplings – SCJ

Contact Vinidex Customer Service for availability of products on this page.

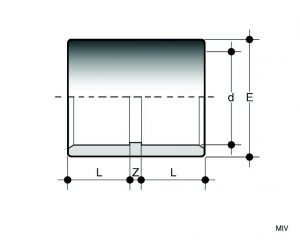

Vinidex Code	Nominal Size (mm)	PN	d (mm)	L (mm)	Z (mm)	E (mm)	Approx. Weight (kg)
30404	200	16	225	119	11	260	2.4
30405	225	10	250	131	10	286	5.45
30406	250	10	280	146	10	320	6.68
30407	300	10	315	164	12	355	8.3
30408	375	5	400	206	12	432	8.3
