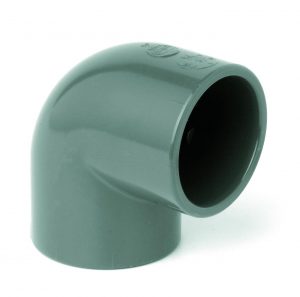

CAT 13 90° Elbows – SCJ

Contact Vinidex Customer Service for availability of products on this page.

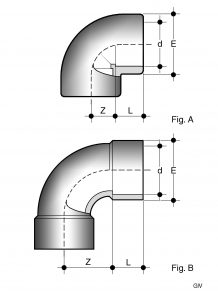

Vinidex Code	Nominal Size (mm)	PN	d (mm)	L (mm)	Z (mm)	E (mm)	Approx. Weight (kg)
30381	200	16	225	119	171.5	258	8.7
30382	225	16	250	131	188	287	9.5
30383	250	10	280	147	210	325	15.7
30384	300	8	315	164	236	359	21.2
30385	375	5	400	206	202	439	35
