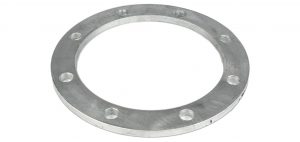

Backing Rings – Galvanised – Table D (Reduced Thickness)



Contact Vinidex Customer Service for availability of products on this page.

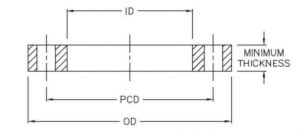

Vinidex Code Nominal Size (mm) OD (mm) ID (mm) Min. Thickness (mm) PCD (mm) No. Bolts Bolts Diameter
83454 200 335 252 12 292 8 M16
83455 225 370 278 12 324 8 M16
83456 250 405 309 12 356 8 M20
83457 300 455 349 12 406 12 M20
83617 375
83458 400 500 434 12 521 12 M24
