SCJ Fittings – Reducers

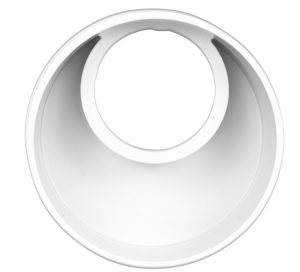

Pipe Reducers M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 56120 | 100 x 40 | 27 | 104 | 10 | 50 |
| 56130 | 100 x 50 | 30 | 104 | 10 | 50 |

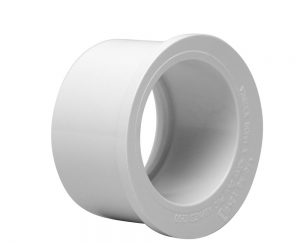

Socket Reducers M-F
| Vinidex Code | Nominal Size (mm) | L (mm) | A (mm) | Min. Order Quantity | Carton Quantity |
| 56170 | 50 x 40 | 34.5 | 61.4 | 10 | 80 |
| 56180 | 65 x 40 | 38 | 69.1 | 10 | 100 |
| 56190 | 65 x 50 | 42 | 74.8 | 5 | 35 |
| 56200 | 80 x 50 | 45.7 | 89 | 5 | 40 |
| 56230 | 100 x 50 | 52.5 | 110.2 | 10 | 50 |
| 56240 | 100 x 65 | 50 | 110.2 | 1 | 81 |
| 56250 | 100 x 80 | 52.7 | 110.2 | 5 | 60 |
