Note: SN = Stiffness, a measure of ability of the pipe to withstand lateral deflection.
SN4 = 4000 N/m/m
SN6 = 6000 N/m/m
SN8 = 8000 N/m/m
SN10 = 10000 N/m/m
Vinidex Code | Nominal Diameter DN | Stiffness Class | Length L (m) | Length L1 (mm) | Min. Quantity | Crate Quantity |

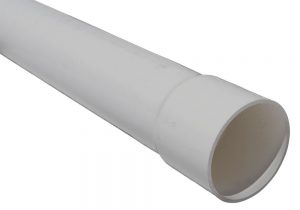

18000 | 100 | SN6 | 6 | 55 | 1 | 67 |
19070 | 150 | SN4 | 6 | 80 | 1 | 26 |
18120 | 150 | SN8 | 3 | 80 | 1 | 28 |
18110 | 150 | SN8 | 6 | 80 | 1 | 26 |
19140 | 225 | SN4 | 6 | 125 | 1 | 12 |
19141 | 225 | SN16 | 3 | 1 | ||
19180 | 225 | SN8 | 6 | 125 | 1 | 12 |
19200 | 225 | SN8 | 3 | 125 | 1 | 12 |
19210 | 300 | SN4 | 6 | 175 | 1 | 6 |
19250 | 300 | SN8 | 6 | 175 | 1 | 6 |
19258 | 300 | SN8 | 3 | 175 | 1 | 6 |
19255 | 300 | SN8 | 6 | 175 | 1 | 6 |
Note: SN = Stiffness, a measure of ability of the pipe to withstand lateral deflection.
SN4 = 4000 N/m/m
SN6 = 6000 N/m/m
SN8 = 8000 N/m/m
SN10 = 10000 N/m/m
Vinidex Code | Nominal Diameter DN | Stiffness Class | Length L (m) | Length L1 (mm) | Crate Quantity |

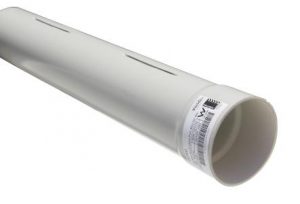

20700 | 100 | SN4 | 6 | 55 | 67 |
20718* | 100 | SN8 | 6 | ||
20728 | 150 | SN4 | 6 | ||
*RRJ |
Note: SN = Stiffness, a measure of ability of the pipe to withstand lateral deflection.
SN4 = 4000 N/m/m
SN6 = 6000 N/m/m
SN8 = 8000 N/m/m
SN10 = 10000 N/m/m
Vinidex Code | Nominal Diameter DN | Stiffness Class | Length L (m) | Min. Quantity | Crate Quantity |

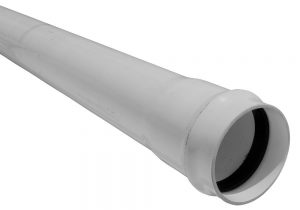

19530 | 100 | SN10 | 6 | 1 | 67 |
19531 | 100 | SN10 | 6 | 1 | |
19610 | 150 | SN8 | 3 | 1 | 28 |
19600 | 150 | SN8 | 3 | 1 | 28 |
19601 | 150 | SN8 | 3 | 1 | |
19680 | 225 | SN8 | 3 | 1 | 12 |
19681 | 225 | SN8 | 3 | 1 | 12 |
19730 | 300 | SN8 | 3 | 1 | 6 |
19780 | 375 | SN8 | 3 | 1 | 6 |
19782 | 375 | SN16 | 4 | 1 |
