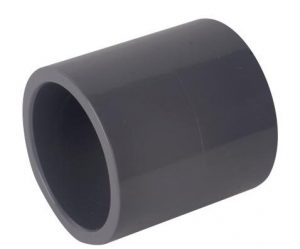

Sockets – Plain



Contact Vinidex Customer Service for availability of products on this page.

Vinidex Code Product Number Nominal Size (inch) PN A B Z1
90466 1100101 3/8 15 21 32 2
90467 1100102 1/2 15 26 38 2
90468 1100103 3/4 15 32 43 3
90469 1100104 1 15 41 50 3
90470 1100105 1 1/4 15 52 60 4
90471 1100106 1 1/2 15 60 66 2
90472 1100107 2 15 74 78 4
90473 1100109 3 15 108 104 4
90474 1100110 4 15 136 135 5
90475 1100112 6 12 201 191 9
90476 1100113 8 9 257 249 11
