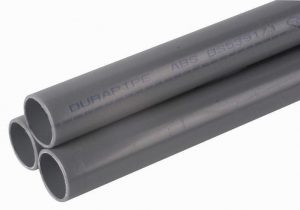

Pipe – ABS Class E

Contact Vinidex Customer Service for availability of products on this page.

217psig (15 Bar)

Vinidex Code	Product Number	Nominal Size (inch)	Mean OD (mm)	Wall Thickness (mm)	Length (m)
90760	01513101	3/8	17.1	1.7	5.8
90874	01522102	1/2	21.4	2.0	5.8
90875	01522103	3/4	26.7	2.5	5.8
90876	01522104	1	33.6	3.1	5.8
90877	01522105	1 1/4	42.2	3.9	5.8
90878	01522106	1 1/2	48.3	4.5	5.8
90879	01522107	2	60.3	5.6	5.8
90880	01522109	3	88.9	8.3	5.8
90881	01522110	4	114.3	10.6	5.8
