Contact Vinidex Customer Service for availability of products on this page.
Stub Flanges
Long Spigot SDR 11
| Vinidex Code | Nominal Size (mm) |
| 62694 | 20 |
| 64032 | 25 |
| 64033 | 32 |
| 64034 | 40 |
| 62289 | 50 |
| 69722 | 63 |
| 69723 | 75 |
| 69769 | 90 |
| 69724 | 110 |
| 69725 | 125 |
| 62292 | 140 |
| 69726 | 160 |
| 69727 | 180 |
| 69728 | 200 |
| 69730 | 225 |
| 69731 | 250 |
| 69732 | 280 |
| 69733 | 315 |
| 69790 | 355 |
| 69792 | 400 |
| 30440 | *450 |
| 73433 | *630 |
| 73438 | *710 |
| *With pipe extension |
Long Spigot SDR 17
| Vinidex Code | Nominal Size (mm) |
| 62475 | 63 |
| 62486 | 75 |
| 62489 | 90 |
| 62490 | 110 |
| 62491 | 125 |
| 62493 | 140 |
| 62495 | 160 |
| 69721 | 180 |
| 62497 | 200 |
| 62499 | 225 |
| 62500 | 250 |
| 62674 | 280 |
| 62686 | 315 |
| 69791 | 355 |
| 69793 | 400 |
| 62769 | 450 |
| 69797 | 500 |
| 69799 | 630 |
| 69800 | 710 |
| 69801 | 800 |
| 69802 | 900 |
| 69803 | 1000 |

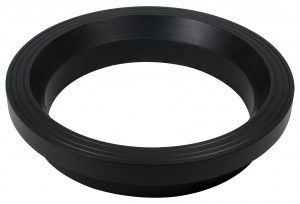

Short Spigot SDR 11
| Vinidex Code | Nominal Size (mm) |
| 71184 | 200 |
| 71185 | 225 |
| 71186 | 250 |
| 71187 | 280 |
| 71188 | 315 |
| 71189 | 355 |
| 71190 | 400 |
| 71191 | 450 |
| 73435 | 500 |
| 71192 | 560 |
| 71198 | 630 |
| 62361 | 710 |
Short Spigot SDR 17
| Vinidex Code | Nominal Size (mm) |
| 71168 | 200 |
| 71169 | 225 |
| 71305 | 250 |
| 71301 | 280 |
| 71285 | 315 |
| 71173 | 355 |
| 71174 | 400 |
| 71175 | 450 |
| 71176 | 500 |
| 71193 | 560 |
| 62410 | 630 |
| 62398 | 710 |
| 71199 | 800 |
| 65414 | 900 |
| 71202 | 1000 |
