Pressure Tapping Valve



Contact Vinidex Customer Service for availability of products on this page.



Pressure Tapping Tee with Underclamp

Vinidex Code Nominal Size (mm x mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
88917 50 x 32 11 16 10 615955 DAV
88918 63 x 32 11 16 10 615341 DAV
88919 63 x 40 11 16 10 615342 DAV
89302 75 x 32 11 16 10 615956 DAV
89303 90 x 32 11 16 10 615344 DAV
89304 90 x 50 11 16 10 615346 DAV
88929 90 x 63 11 16 10 615347 DAV
89305 110 x 32 11 16 10 615348 DAV
89306 110 x 50 11 16 10 615350 DAV
89307 110 x 63 11 16 10 615351 DAV
89308 125 x 32 11 16 10 615352 DAV
89309 125 x 50 11 16 10 615354 DAV
89310 125 x 63 11 16 10 615355 DAV
89311 140 x 63 11 16 10 615930 DAV
89312 160 x 32 11 16 10 615356 DAV
89313 160 x 50 11 16 10 615358 DAV
89314 160 x 63 11 16 10 615359 DAV
89315 180 x 32 11 16 10 615361 DAV
89316 180 x 50 11 16 10 615363 DAV
89317 180 x 63 11 16 10 615364 DAV
88950 200 x 32 11 16 10 615366 DAV
89318 200 x 50 11 16 10 615368 DAV
89319 200 x 63 11 16 10 615369 DAV
89320 225 x 32 11 16 10 615374 DAV
89321 225 x 50 11 16 10 615376 DAV
89322 225 x 63 11 16 10 615377 DAV

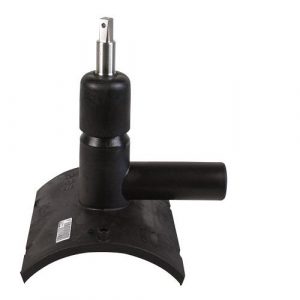

Top Loading with Extra Long Outlet Spigot SDR 11 PE 100



Vinidex Code Nominal Size (mm x mm) SDR PN Water PN Gas Friatec Code Frialen Model Code
89323 250-315 x 63 11 16 10 616464 DAV-TL
89324 355-400 x 63 11 16 10 616465 DAV-TL
