Ball Valves Short Stem



Contact Vinidex Customer Service for availability of products on this page.

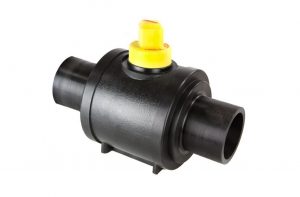

1/4 turn, Full Port SDR 11 PE 100 (No Purge) Without Gearbox

Vinidex Code Nominal Size (mm) SDR PN Water Supplier
70101 20 11 16 DAEYOUN
70102 25 11 16 DAEYOUN
70103 32 11 16 DAEYOUN
70104 40 11 16 DAEYOUN
70105 50 11 16 DAEYOUN
70106 63 11 16 DAEYOUN
70107 75 11 16 DAEYOUN
70108 90 11 16 DAEYOUN
70109 110 11 16 DAEYOUN
70110 125 11 16 DAEYOUN
70172 160 11 16 DAEYOUN
70111 180 11 16 DAEYOUN
70113 200 11 16 DAEYOUN
70112 225 11 16 DAEYOUN
70114 250 11 16 DAEYOUN
70115 315 11 16 DAEYOUN
70116 355 11 16 DAEYOUN

1-4 Turn, Full Port SDR 11 PE 100 (No Purge) With Gearbox

Vinidex Code Nominal Size (mm) SDR PN Water Supplier
70117 125 11 16 DAEYOUN
70173 160 11 16 DAEYOUN
70118 180 11 16 DAEYOUN
70176 200 11 16 DAEYOUN
70119 225 11 16 DAEYOUN
70120 250 11 16 DAEYOUN
70183 315 11 16 DAEYOUN
70121 355 11 16 DAEYOUN
70178 400 11 16 DAEYOUN
70166 630 11 16 DAEYOUN

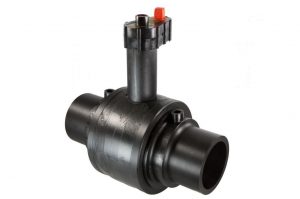

1/4 turn, Full Port SDR 11 PE 100 (Bypass) With Gearbox

Vinidex Code Nominal Size (mm) SDR PN Water Supplier
70122 125 11 16 DAEYOUN
70177 250 11 16 DAEYOUN
70184 315 11 16 DAEYOUN
70179 400 11 16 DAEYOUN
