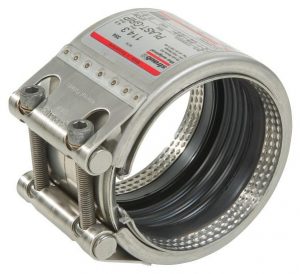

Straub Plastic Grip 40 – 160 mm

Contact Vinidex Customer Service for availability of products on this page.

Component/Material W4
Casing AISI 304
Bolts A4 – 80
Bars AISI 304
Anchoring Rings AISI 301
Strip Insert AISI 316 L / HDPE
Vinidex Code - EPDM Vinidex Code - NBR Pipe OD (mm) Clamping Range (mm) - Plastic | Metal PS Bar B (mm) C (mm) DV (mm) KV (mm) Pipe Gap with Strip Insert (mm) Torque rate Nm Allen Head (mm)
76015 76023 40 39.0 - 40.5 16 61 19 60 90 5 15 6
76016 76024 50 49.0 - 50.5 16 61 61 70 100 5 15 6
76017 76025 63 62.0 - 64.0 16 76 76 85 115 5 to 10 20 6
76018 76026 75 74.0 - 76.0 16 94 94 99 137 5 to 10 25 8
76019 76027 90 89.0 - 91.0 16 94 94 118 152 5 to 10 25 8
76020 76028 110 109.0 - 111.0 16 94 94 135 167 5 to 10 25 8
76021 76029 114.3 113.0 - 115.0 16 94 94 139 172 5 to 10 25 10
125 124.0 - 126.0 16 94 94 152 185 5 to 15 60 10
140 139.0 - 142.0 16 108 108 168 200 5 to 15 60 10
76022 76030 160 159.0 - 162.0 16 108 108 188 215 5 to 15 60 10

Follow fitting/disassembly instructions.
PS = Working pressure considering the application loads.
Test pressure = PS x 1.5 (for example industry, water supply etc.)
For the installation of pipes made of HDPE and PP, Straub stiffening rings are required.
Strip inserts are supplied with all couplings sold in Australia.
