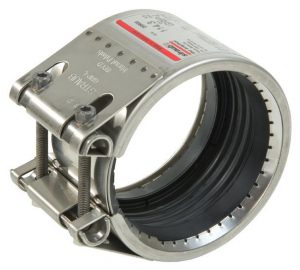

Straub Grip L 180 – 711.2 mm

Contact Vinidex Customer Service for availability of products on this page.

W5 W5
AISI 316 L / AISI 316 TI AISI 316 L / AISI 316 TI
A4 – 80 A4 – 80
AISI 316 L AISI 316 L
AISI 301 AISI 301
AISI 316 L / HDPE AISI 316 L / HDPE

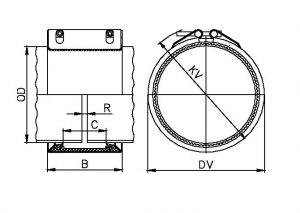

Vinidex Code - EPDM Vinidex Code - NBR Pipe OD (mm) Clamping Range (mm) PS Bar B (mm) C (mm) DV (mm) KV (mm) Pipe Gap with Strip Insert (mm) Torque Rate Nm Allen Head (mm)
76076 76131 180 178.0 - 182.0 16 141 80 205 255 5 to 35 50 10
76077 76132 193.7 192.0 - 195.5 16 141 80 224 270 5 to 35 50 10
76078 76133 200 198.0 - 202.0 15 141 80 230 275 5 to 35 50 10
76079 76134 204 202.0 - 206.0 14 141 80 234 280 5 to 35 50 10
206 204.0 - 208.0 14 141 80 234 234 5 to 35 50 10
76081 76136 232 230.0 - 234.0 9 141 80 262 308 5 to 35 50 10
76082 76137 244.5 242.0 - 247.0 9 141 80 275 320 5 to 35 50 10
76083 76138 250 247.5 - 252.5 9 141 80 280 325 5 to 35 50 10
76084 76139 254 251.5 - 256.5 9 141 80 284 325 5 to 35 50 10
256 253.5 - 258.5 9 141 80 284 325 5 to 35 50 10
76085 76140 267 264.5 - 269.5 8 141 80 297 340 5 to 35 50 10
76086 76141 273 270.5 - 275.5 7 141 80 303 345 5 to 35 50 10
76087 76142 286 284.0 - 288.0 6 141 80 316 355 5 to 35 60 10
76088 76143 304 301.0 - 307.0 6 141 80 334 375 5 to 35 60 10
306 303.0 - 309.0 6 141 80 334 375 5 to 35 60 10
76089 76144 315 312.0 - 318.0 5 141 80 345 386 5 to 35 60 10
76090 76145 323.9 320.5 - 327.0 5 141 80 354 395 5 to 35 60 10
76091 76146 355.6 352.0 - 359.0 10 141 80 386 425 5 to 35 60 10
76092 76147 406.4 402.5 - 410.5 7 141 80 436 470 5 to 35 60 10
76093 76148 457.2 452.5 - 461.5 5 141 80 487 520 5 to 35 60 10
76094 76149 508 503.5 - 512.5 4 141 80 538 570 5 to 35 60 10
76095 76150 558.8 554.5 - 563.5 3 141 80 589 620 5 to 35 60 10
76096 76151 609.6 605.5 - 614.0 2 141 80 640 670 5 to 35 60 10
76097 711.2 707.1 - 715.6 1 141 80 742 770 5 to 35 120 14

Follow fitting/disassembly instructions.
PS = Working pressure considering the application loads.
Test pressure = PS x 1.5 (for example industry, water supply etc.).
The pressure values are valid on radial rigid carbon steel pipes under static loads.
Refer to the technical manual for minimum wall thickness of pipe.
Strip inserts are supplied with all couplings sold in Australia.
