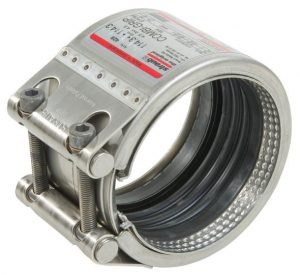

Straub Combi Grip 40 – 160 mm

Contact Vinidex Customer Service for availability of products on this page.

Component/Material W4
Casing AISI 304 TI
Bolts A4 – 80
Bars AISI 304
Anchoring Rings AISI 301
Strip Insert AISI 316 L / HDPE

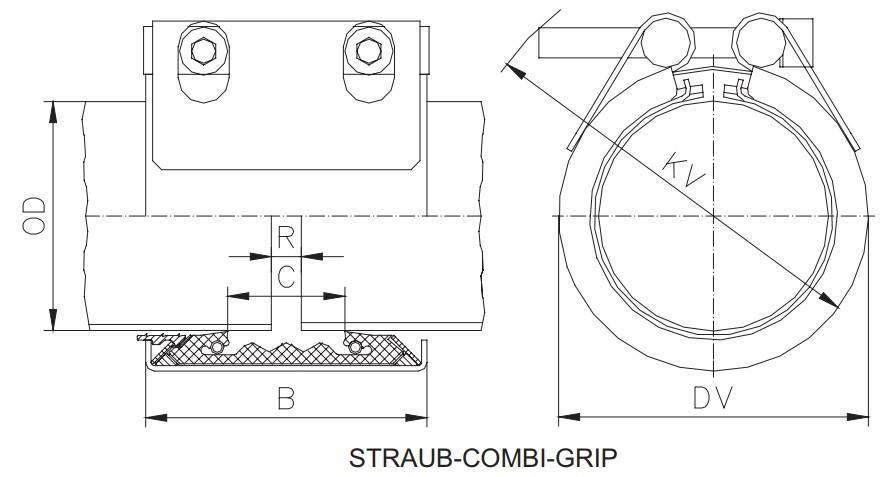

Vinidex Code - EPDM Vinidex Code - NBR Pipe OD (mm) Clamping Range (mm) - Plastic | Metal PS Bar B (mm) C (mm) DV (mm) KV (mm) Pipe Gap with Strip Insert (mm) Torque rate Nm Allen Head (mm)
40.0/38.0 39.0-40.5 I 37.5-39.0 16 61 19 60 90 5 to 10 15 6
76031 76036 40.0/42.4 39.0-40.5 I 42.0-43.5 16 61 20 63 95 5 to 10 15 6
76032 76037 50.0/48.3 49.0-50.5 I 47.8-49.0 16 61 26 70 100 5 to 10 15 6
76033 76038 63.0/60.3 62.0-64.0 I 59.7-61.0 16 76 32 85 115 5 to 25 20 6
75.0/76.1 74.0-76.0 I 75.0-77.5 16 94 39 100 137 5 to 25 25 8
76034 76039 90.0/88.9 89.0-91.0 I 87.0-90.0 16 94 39 118 152 5 to 25 25 8
110.0/108.0 109.0-111.0 I 106.5-110.5 16 94 39 135 167 5 to 25 25 8
110.0/114.3 109.0-111.0 I 112.0-116.0 16 97 45 139 172 5 to 25 25 8
76035 76040 114.3/114.3 113.0-115.0 I 112.0-116.0 16 94 39 140 177 5 to 25 25 8
140.0/139.7 139.0-142.0 I 137.5-141.0 16 109 43 168 200 5 to 30 60 10
160.0/159.0 159.0-162.0 I 157.0-160.5 16 109 43 188 215 5 to 30 60 10

Follow fitting/disassembly instructions.
PS = Working pressure considering the application loads.
Test pressure = PS x 1.5 (for example industry, water supply etc.).
For the installation of pipes made of HDPE and PP, Straub stiffening rings are required.
Strip inserts are supplied with all couplings sold in Australia.
