Vinidex Converge is a key component of Reduced Velocity Aerator Stack System (RVASS) design which allows for a single stack system thus removing the need for a separate vent pipe.
This gives building designers the flexibility to reduce the size of service ducts and create more usable floor space. As such, no additional tools or installation techniques are required to fit the Converge aerator, significantly reducing material and labour costs.
| Vx Item Code | Description | Cartons per Pallet |
| 58293 | 100 DWV Converge Aerator F&F | 26 |
| 58301 | 100 DWV Converge +IO Exo Kit | 20 |

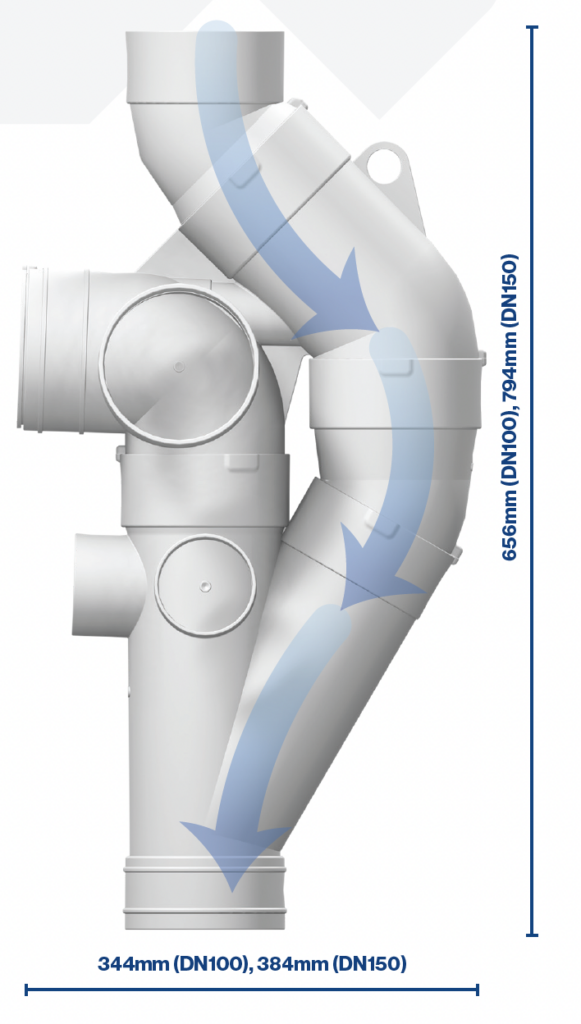

Length L (340mm) – Width W (227mm) – Height H (656mm)
Size Range
SCJ: DN100
Material Classification
Temperature
Maximum continuous operating temperature is 60°C. For more information, please read our Technical Notes.
Location
Suitable for indoor & outdoor use.
Chemical
Best Environment Practice
Vinidex-BEP-certificate-2022
Environmental Product Declaration
VIN102 PVC Non-Pressure Pipes and Conduits used in Buildings
Standards for DQV pipes and fittings
Vinidex DWV pipes and fittings are manufactured and tested in accordance with AS/NZS 1260 – PVC-U pipes and fittings for drain, waste and vent applications.
Green Star
Vinidex DWV pipes and fittings are manufactured from BEPPVC and have an EPD registered with the Australasian EPD Programmer. This allows constructors to claim credit points under the Green Building Council of Australia’s (GBCA) Green Star ratings tools.
Safety Data Sheets (SDS)
Click here to access our Safety Data Sheets Page.
Standards for solvent cement
Priming fluid and solvent cements supplied by Vinidex comply with AS/NZS 3879 – Solvent cements and priming fluids for PVC (PVC-U and PVC-M) and ABS and ASA pipes and fittings.
Standards Mark
SMK-1246_VXM_exp-20251111-AS-NZS-1260
Watermark
WMKA1246_VXM_exp-20251111-AS-NZS-1260
Video
Converge Install Video
Standards
Vinidex recommends that installation is in accordance with AS/NZS 3500.2 Plumbing and Drainage and AS/NZS 2032 – Installation of PVC pipes systems.
Quick Reference Installation Guide
VIN340A-Quick-Installation-Guide_PVC-Solvent-Cement
Converge PVC RVASS Technical Datasheet
Converge-PVC-Aerator-Technical-Datasheet
Best Environment Practice
Environmental Product Declaration
VIN102 PVC Non-Pressure Pipes and Conduits used in BuildingsStandards for DQV pipes and fittings
Vinidex DWV pipes and fittings are manufactured and tested in accordance with AS/NZS 1260 – PVC-U pipes and fittings for drain, waste and vent applications.
Green Star
Vinidex DWV pipes and fittings are manufactured from BEPPVC and have an EPD registered with the Australasian EPD Programmer. This allows constructors to claim credit points under the Green Building Council of Australia’s (GBCA) Green Star ratings tools.
Safety Data Sheets (SDS)
Click here to access our Safety Data Sheets Page.
Standards for solvent cement
Priming fluid and solvent cements supplied by Vinidex comply with AS/NZS 3879 – Solvent cements and priming fluids for PVC (PVC-U and PVC-M) and ABS and ASA pipes and fittings.
Standards Mark
Watermark
Video
Standards
Vinidex recommends that installation is in accordance with AS/NZS 3500.2 Plumbing and Drainage and AS/NZS 2032 – Installation of PVC pipes systems.
Quick Reference Installation Guide
Converge PVC RVASS Technical Datasheet
